SBP-Scriptable Build Pipeline

发表于 更新于
作者 JunQiang
20 分钟阅读

前言

Scriptable Build Pipeline 是什么？能来带什么好处？

  • 自定义 Unity 如何构建应用内容
  • 将原先处于C++的引擎代码移到了C#
  • 加速了AssetBundle的构建时间
  • 改善增量构建处理
  • 对开发者来说具备更多的灵活性

Unity版本要求

  • Unity 2018.3 +

术语

  • Asset

    磁盘上的源文件，通常位于项目的 “Assets” 文件夹中。

    此文件在内部导入到的资产的可用于游戏的表示形式，其中可以包含多个 Object（SubAsset）。

  • Object (SubAsset)

    单个Unity可序列化单元。也称为SubAsset。导入的Asset由一个或多个对象组成。

  • Includes

    从中构造Asset的唯一 一组Object。

  • References

    一组 需要被 Asset 使用，但不在该 Asset 中 的Object。

快速入门 & BuildIn切换

BuildAssetBundles

BuildIn Pipeline

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

using System.IO;
using UnityEditor;

public static class BuildAssetBundlesExample
{
    public static bool BuildAssetBundles(string outputPath, bool forceRebuild, bool useChunkBasedCompression, BuildTarget buildTarget)
    {
        var options = BuildAssetBundleOptions.None;
        if (useChunkBasedCompression)
            options |= BuildAssetBundleOptions.ChunkBasedCompression;

        if (forceRebuild)
            options |= BuildAssetBundleOptions.ForceRebuildAssetBundle;

        Directory.CreateDirectory(outputPath);
        var manifest = BuildPipeline.BuildAssetBundles(outputPath, options, buildTarget);
        return manifest != null;
    }
}

SBP

  • CompatibilityBuildPipeline 是SBP 目前官方使用SBP流程适配 BuildIn流程的 适配实现。

    SBP仅支持 BuildIn 管线的部分功能，并且细节上存在部分的差异。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

using System.IO;
using UnityEditor;
// Added new using
using UnityEditor.Build.Pipeline;

public static class BuildAssetBundlesExample
{
    public static bool BuildAssetBundles(string outputPath, bool forceRebuild, bool useChunkBasedCompression, BuildTarget buildTarget)
    {
        var options = BuildAssetBundleOptions.None;
        if (useChunkBasedCompression)
            options |= BuildAssetBundleOptions.ChunkBasedCompression;

        if (forceRebuild)
            options |= BuildAssetBundleOptions.ForceRebuildAssetBundle;

        Directory.CreateDirectory(outputPath);
        // Replaced BuildPipeline.BuildAssetBundles with CompatibilityBuildPipeline.BuildAssetBundles here
        var manifest = CompatibilityBuildPipeline.BuildAssetBundles(outputPath, options, buildTarget);
        return manifest != null;
    }
}

注意事项

CompatibilityBuildPipeline.BuildAssetBundles vs BuildPipeline.BuildAssetBundle 的特性与行为的对比

特性是否支持说明
AssetBundles支持与原流程基本一致
增量构建支持SBP对于增量构建的逻辑封装为 BuildCache 类实现。
关于资源加载的路径参数行为变更原有构建的 AssetBundle 支持两种入参形式：全路径（Assets/ExampleFolder/Asset.prefab) 、文件名(Asset、Asset.prefab)
SBP构建的 AssetBundle 仅支持全路径(``Assets/ExampleFolder/Asset.prefab)的入参。<br>如果需要重载加载时的入参，可使用IBundleBuildContent.Addresses 或 [AssetBundleBuild.addressableNames](https://docs.unity3d.com/ScriptReference/AssetBundleBuild-addressableNames.html) <br> 推荐使用 SBP中的 IBundleBuildContent` 有利于构建流程的统一和开发便利性。
AssetBundle Manifest行为变更SBP 提供了 CompatibilityAssetBundleManifest 来适配 原来的 Manifest，并且新增了获取 Bundle CRC的接口
AssetBundle Variants不支持目前SBP没有提供变体的支持；个人也不推荐使用。

BuildAssetBundleOptions

Value是否支持说明
UncompressedAssetBundle支持等价于 BuildCompression.DefaultUncompressed
ChunkBasedCompression支持等价于 BuildCompression.DefaultLZ4.
需要注意的是： 在编辑器下 采用 LZ4HC，若是运行时重新压缩的话将采用LZ4
DisableWriteTypeTree支持等价于 ContentBuildFlags.DisableWriteTypeTree
DeterministicAssetBundle支持默认开启，并且不能关闭。SBP的构建是资源确定性，这对于需要支持资源更新的游戏是好处
ForceRebuildAssetBundle支持等价于 IBuildParameters.UseCache = false;
AppendHashToAssetBundleName支持等价于 IBundleBuildParameters.AppendHash = true;
DisableLoadAssetByFileName总是开启默认开启，并且不能关闭。SBP遵循的原则是 构建时的入参即是运行时的入参；
加载入参要求：大小写、标点符号 与构建时的参数一致
DisableLoadAssetByFileNameWithExtension总是开启类比于 DisableLoadAssetByFileName 的逻辑
IgnoreTypeTreeChanges不支持SBP的增量构建系统 使用 TypeTree作为数据是否变更的依据，来防止Asset数据没有修改，而序列化结构变更导致的重新构建
StrictMode不支持SBP严格要求正确构建AssetBundles并知道何时构建失败
DryRunBuild不支持SBP的工作原理根本不同，进行完整构建以确定是否已更改的速度更快

AssetBundle SBP 构建流程

  1. Setup - 平台环境初始化
    • SwitchToBuildPlatform
    • RebuildSpriteAtlasCache
  2. Player Scripts - 工程源代码编译
    • BuildPlayerScripts
    • PostScriptsCallback
  3. Dependency
    • CalculateSceneDependencyData
    • CalculateCustomDependencyData (UNITY_2019_3_OR_NEWER)
    • CalculateAssetDependencyData
    • StripUnusedSpriteSources
    • PostDependencyCallback
  4. Packing
    • GenerateBundlePacking
    • GenerateBundleCommands
    • GenerateSubAssetPathMaps
    • GenerateBundleMaps
    • PostPackingCallback
  5. Writing
    • WriteSerializedFiles
    • ArchiveAndCompressBundles
    • AppendBundleHash
    • GenerateLinkXml
    • PostWritingCallback
  6. Generate manifest files
    • 官方 TODO 项

Setup

SwitchToBuildPlatform

  1. 切换 当前平台 为构建AssetBundle的 目标平台 对应的 BuildTargetGroup 、 BuildTarget
  2. 执行回调 IPreprocessShaders 、IProcessScene、IProcessSceneWithReport

关键逻辑：

1

EditorUserBuildSettings.SwitchActiveBuildTarget(m_Parameters.Group, m_Parameters.Target);

RebuildSpriteAtlasCache

  1. 针对目标平台 重新构建 工程内所有的 SpriteAtlas

关键逻辑：

1

SpriteAtlasUtility.PackAllAtlases(m_Parameters.Target);

Player Scripts

BuildPlayerScripts

  1. 编译 目标平台 源代码 生成 ScriptInfo（TypeDB - 记录了脚本类型 、 属性数据）

    TypeDB 为后续的序列化 提供 正确的字段名称；

关键逻辑：

1

PlayerBuildInterface.CompilePlayerScripts(m_Parameters.GetScriptCompilationSettings(), m_Parameters.ScriptOutputFolder);

PostScriptsCallback

  1. 回调脚本订阅了脚本编译完成节点的所有函数

    上层开发者，注册监听 BuildCallbacks.PostScriptsCallbacks

关键逻辑：

1

IScriptsCallback.PostScripts(IBuildParameters parameters, IBuildResults results);

Dependency

CalculateSceneDependencyData - 计算所有场景的依赖信息

  1. 判断是否使用 Cache 机制
  2. 计算场景相关依赖项

关键逻辑：

1
2
3
4
5

#if UNITY_2019_3_OR_NEWER
                    ContentBuildInterface.CalculatePlayerDependenciesForScene(scenePath, settings, usageTags, m_DependencyData.DependencyUsageCache);
#else
                    ContentBuildInterface.PrepareScene(scenePath, settings, usageTags, m_DependencyData.DependencyUsageCache, outputFolder);
#endif

Cache 仅记录 预制相关的依赖

CalculateCustomDependencyData (UNITY_2019_3_OR_NEWER)

计算未被 AssetDatabase 追踪的 自定义 Assets 依赖的 Object关系

由 IBundleBuildContent.CustomAssets 自定义 AssetBundle包含的内容

关键逻辑：

1
2
3
4

foreach (CustomContent info in IBundleBuildContent.CustomAssets)
{
    info.Processor(info.Asset, this);
}

CalculateAssetDependencyData - 计算所有 Asset的依赖数据

  1. 基础入参
    • 源代码的 TypeDB
    • GraphicsSettings
    • 场景的LightSetting

  2. 获取 Asset 的 所包含的 Objects

    即为 该Asset引用的 Object；为 该 Asset YAML 序列化中 !u![ClassID] 段所表示的 Object。

  3. 通过 TypeDB 获取 Objects 所引用的 Objects

  4. 如果是 Sprite 类型资源，则进行 Sprite Atlas 的打包设置

  5. 计算 SubAssets

关键逻辑：

1
2
3
4
5
6
7
8

var includedObjects = ContentBuildInterface.GetPlayerObjectIdentifiersInAsset(asset, input.Target);
var referencedObjects = ContentBuildInterface.GetPlayerDependenciesForObjects(includedObjects, input.Target, input.TypeDB);
ObjectIdentifier[] representations = ContentBuildInterface.GetPlayerAssetRepresentations(asset, target);
// Main Asset always returns at index 0, we only want representations, so check for greater than 1 length
if (representations.IsNullOrEmpty() || representations.Length < 2)
    return;
extendedData = new ExtendedAssetData();
extendedData.Representations.AddRange(representations.Skip(1));

StripUnusedSpriteSources - 删除 Assets引用中被Packer的Sprite

  1. 筛选出 已经被 SpritePacker 打包的Sprite，所归属的 SourceTexture
  2. 删除 Assets 中引用的 Sprite信息

关键逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

var unusedSources = new HashSet<ObjectIdentifier>();
var textures = m_SpriteData.ImporterData.Values.Where(x => x.PackedSprite).Select(x => x.SourceTexture);
unusedSources.UnionWith(textures);

// Count refs from assets
var assetRefs = m_DependencyData.AssetInfo.SelectMany(x => x.Value.referencedObjects);
foreach (ObjectIdentifier reference in assetRefs)
unusedSources.Remove(reference);

// Count refs from scenes
var sceneRefs = m_DependencyData.SceneInfo.SelectMany(x => x.Value.referencedObjects);
foreach (ObjectIdentifier reference in sceneRefs)
unusedSources.Remove(reference);

// SetOutputInformation
foreach (var source in unusedSources)
{
    var assetInfo = m_DependencyData.AssetInfo[source.guid];
    assetInfo.includedObjects.RemoveAt(0);

    ExtendedAssetData extendedData;
    if (m_ExtendedAssetData != null && m_ExtendedAssetData.ExtendedData.TryGetValue(source.guid, out extendedData))
    {
        extendedData.Representations.Remove(source);
        if (extendedData.Representations.Count == 1)
        m_ExtendedAssetData.ExtendedData.Remove(source.guid);
    }
}

PostDependencyCallback

  1. 在依赖计算完成后的事件通知

    上层开发者，注册监听 BuildCallbacks.PostDependencyCallback

关键逻辑：

1

IDependencyCallback.PostDependency(IBuildParameters parameters, IDependencyData dependencyData);

Packing - 资源构建

GenerateBundlePacking - 组装AssetBundle以及计算依赖加载列表

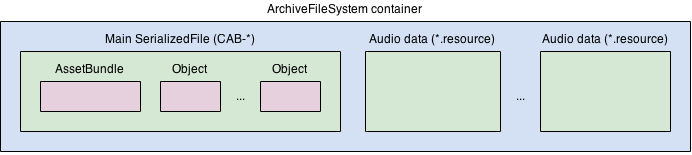

Normal AssetBundle

Normal AssetBundle structure

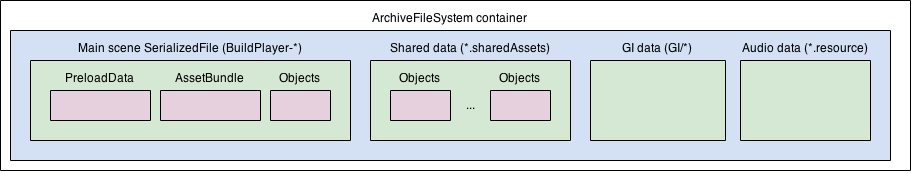

Streamed Scene AssetBundle

Streamed scene AssetBundle structure

ArchiveFileSystem

The ArchiveFileSystem container has the following structure

  1. 校验 Object 是否是 Assets 类型 或 自定义Assets类型Scene 类型，创建对应类型的 “容器结构”

    可通过 ValidationMethods.ValidAssetFake 接管 校验逻辑

  2. 计算 Asset 所依赖的加载列表

    • 剔除 Unity默认的内置资源引用
    • 处理依赖关系中的重复递归依赖 & 打破环形依赖；（若是 Scene Bundle，则剔除 sharedAssets 的重复引用）

关键逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

foreach (var bundle in m_BuildContent.BundleLayout)
{
    if (ValidAssetBundle(bundle.Value, customAssets))
        PackAssetBundle(bundle.Key, bundle.Value, assetToReferences);
    else if (ValidationMethods.ValidSceneBundle(bundle.Value))
        PackSceneBundle(bundle.Key, bundle.Value, assetToReferences);
}

// Remove Default Resources and Includes for Assets assigned to Bundles
foreach (ObjectIdentifier reference in references)
{
    if (reference.filePath.Equals(CommonStrings.UnityDefaultResourcePath, StringComparison.OrdinalIgnoreCase))
        continue;
    if (dependencyData.AssetInfo.TryGetValue(reference.guid, out AssetLoadInfo referenceInfo))
    {
        referencedAssets.Add(referenceInfo);
        continue;
    }
    referencesPruned.Add(reference);
}

var referencedAssetsGuids = new List<GUID>(referencedAssets.Count);
// Remove References also included by non-circular Referenced Assets
// Remove References also included by circular Referenced Assets if Asset's GUID is higher than Referenced Asset's GUID
foreach (AssetLoadInfo referencedAsset in referencedAssets)
{
    var refObjectIdLookup = new HashSet<ObjectIdentifier>(referencedAsset.referencedObjects);
    bool circularRef = refObjectIdLookup.Select(x => x.guid).Contains(asset);
    if (!circularRef || (circularRef && asset > referencedAsset.asset || asset == referencedAsset.asset))
        references.RemoveAll(refObjectIdLookup.Contains);
    referencedAssetsGuids.Add(referencedAsset.asset);
}

// Special path for scenes, they can use data from previous sharedAssets in the same bundle
if (!previousSceneObjects.IsNullOrEmpty())
    references.RemoveAll(previousSceneObjects.Contains);

GenerateBundleCommands - 为需要序列化的AssetBundle创建WriteOperation行为

  1. 初始化 AssetBundle MainAsset

  2. 创建对应的 BundleCommand (CreateAssetBundleCommand、CreateSceneBundleCommand + CreateSceneDataCommand)

    AssetBundleCommand :

    • 建立加载 Asset的入参 与 Object的映射关系
    • 记录 AssetsBundle 中包含的Assets相关信息（依赖的Object hash、序列化组织形式等）并排序，以此确保每次序列化数据的稳定性

    SceneBundleCommand :

    • 建立加载 Scene 所包含需要序列化的Object与 加载的入参的映射关系
    • 记录 SceneBundle 依赖的Object 至 preloadObjects

    SceneDataCommand :

    • 建立加载Scene 所需要附加的Assets 的映射关系
    • 记录 SceneBundle 依赖的Object 至 preloadObjects

关键逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

Dictionary<GUID, string> assetToMainFile = new Dictionary<GUID, string>();
foreach (var pair in m_WriteData.AssetToFiles)
	assetToMainFile.Add(pair.Key, pair.Value[0]);

foreach (var bundlePair in m_BuildContent.BundleLayout)
{
    if (ValidAssetBundle(bundlePair.Value, customAssets))
    {
        // Use generated internalName here as we could have an empty asset bundle used for raw object storage (See CreateStandardShadersBundle)
        var internalName = string.Format(CommonStrings.AssetBundleNameFormat, m_PackingMethod.GenerateInternalFileName(bundlePair.Key));
        CreateAssetBundleCommand(bundlePair.Key, internalName, bundlePair.Value);
    }
    else if (ValidationMethods.ValidSceneBundle(bundlePair.Value))
    {
        var firstScene = bundlePair.Value[0];
        CreateSceneBundleCommand(bundlePair.Key, assetToMainFile[firstScene], firstScene, bundlePair.Value, assetToMainFile);
        for (int i = 1; i < bundlePair.Value.Count; ++i)
        {
            var additionalScene = bundlePair.Value[i];
            CreateSceneDataCommand(assetToMainFile[additionalScene], additionalScene);
        }
    }
}

GenerateSubAssetPathMaps

  1. 向 AssetBundle里插入 扩展资源 （“依赖资源”）

关键逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

Dictionary<string, IWriteOperation> fileToOperation = m_WriteData.WriteOperations.ToDictionary(x => x.Command.internalName, x => x);
foreach (var pair in m_ExtendedAssetData.ExtendedData)
{
    GUID asset = pair.Key;
    string mainFile = m_WriteData.AssetToFiles[asset][0];
    var abOp = fileToOperation[mainFile] as AssetBundleWriteOperation;

    int assetInfoIndex = abOp.Info.bundleAssets.FindIndex(x => x.asset == asset);
    AssetLoadInfo assetInfo = abOp.Info.bundleAssets[assetInfoIndex];
    int offset = 1;
    foreach (var subAsset in pair.Value.Representations)
    {
        var secondaryAssetInfo = CreateSubAssetLoadInfo(assetInfo, subAsset);
        abOp.Info.bundleAssets.Insert(assetInfoIndex + offset, secondaryAssetInfo);
        offset++;
    }
}

GenerateBundleMaps - 前向依赖 & 反向依赖

  1. 计算 前向依赖 & 反向依赖

    前向依赖 : 记录 AssetBundle中Object依赖其他的AssetBundle的Object 信息

    反向依赖 : 记录包中资源数据被其他源AssetBundle依赖的信息

  2. 使用依赖关系简化引用映射以及Object构建方式

关键逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84

// BuildReferenceMap details what objects exist in other bundles that objects in a source bundle depend upon (forward dependencies)
            // BuildUsageTagSet details the conditional data needed to be written by objects in a source bundle that is in used by objects in other bundles (reverse dependencies)
            using (m_Log.ScopedStep(LogLevel.Info, $"Temporary Map Creations"))
            {
                fileToCommand = m_WriteData.WriteOperations.ToDictionary(x => x.Command.internalName, x => x.Command);
                forwardObjectDependencies = new Dictionary<string, HashSet<ObjectIdentifier>>();
                forwardFileDependencies = new Dictionary<string, HashSet<string>>();
                reverseAssetDependencies = new Dictionary<string, HashSet<GUID>>();
                foreach (var pair in m_WriteData.AssetToFiles)
                {
                    GUID asset = pair.Key;
                    List<string> files = pair.Value;

                    // The includes for an asset live in the first file, references could live in any file
                    forwardObjectDependencies.GetOrAdd(files[0], out HashSet<ObjectIdentifier> objectDependencies);
                    forwardFileDependencies.GetOrAdd(files[0], out HashSet<string> fileDependencies);

                    // Grab the list of object references for the asset or scene and add them to the forward dependencies hash set for this file (write command)
                    if (m_DependencyData.AssetInfo.TryGetValue(asset, out AssetLoadInfo assetInfo))
                        objectDependencies.UnionWith(assetInfo.referencedObjects);
                    if (m_DependencyData.SceneInfo.TryGetValue(asset, out SceneDependencyInfo sceneInfo))
                        objectDependencies.UnionWith(sceneInfo.referencedObjects);

                    // Grab the list of file references for the asset or scene and add them to the forward dependencies hash set for this file (write command)
                    // While doing so, also add the asset to the reverse dependencies hash set for all the other files it depends upon.
                    // We already ensure BuildReferenceMap & BuildUsageTagSet contain the objects in this write command in GenerateBundleCommands. So skip over the first file (self)
                    for (int i = 1; i < files.Count; i++)
                    {
                        fileDependencies.Add(files[i]);
                        reverseAssetDependencies.GetOrAdd(files[i], out HashSet<GUID> reverseDependencies);
                        reverseDependencies.Add(asset);
                    }
                }
            }

            // Using the previously generated forward dependency maps, update the BuildReferenceMap per WriteCommand to contain just the references that we care about
            using (m_Log.ScopedStep(LogLevel.Info, $"Populate BuildReferenceMaps"))
            {
                foreach (var operation in m_WriteData.WriteOperations)
                {
                    var internalName = operation.Command.internalName;

                    BuildReferenceMap referenceMap = m_WriteData.FileToReferenceMap[internalName];
                    if (!forwardObjectDependencies.TryGetValue(internalName, out var objectDependencies))
                        continue; // this bundle has no external dependencies
                    if (!forwardFileDependencies.TryGetValue(internalName, out var fileDependencies))
                        continue; // this bundle has no external dependencies
                    foreach (string file in fileDependencies)
                    {
                        WriteCommand dependentCommand = fileToCommand[file];
                        foreach (var serializedObject in dependentCommand.serializeObjects)
                        {
                            // Only add objects we are referencing. This ensures that new/removed objects to files we depend upon will not cause a rebuild
                            // of this file, unless are referencing the new/removed objects.
                            if (!objectDependencies.Contains(serializedObject.serializationObject))
                                continue;

                            referenceMap.AddMapping(file, serializedObject.serializationIndex, serializedObject.serializationObject);
                        }
                    }
                }
            }

            // Using the previously generate reverse dependency map, create the BuildUsageTagSet per WriteCommand to contain just the data that we care about
            using (m_Log.ScopedStep(LogLevel.Info, $"Populate BuildUsageTagSet"))
            {
                foreach (var operation in m_WriteData.WriteOperations)
                {
                    var internalName = operation.Command.internalName;
                    BuildUsageTagSet fileUsage = m_WriteData.FileToUsageSet[internalName];
                    if (reverseAssetDependencies.TryGetValue(internalName, out var assetDependencies))
                    {
                        foreach (GUID asset in assetDependencies)
                        {
                            if (m_DependencyData.AssetUsage.TryGetValue(asset, out var assetUsage))
                                fileUsage.UnionWith(assetUsage);
                            if (m_DependencyData.SceneUsage.TryGetValue(asset, out var sceneUsage))
                                fileUsage.UnionWith(sceneUsage);
                        }
                    }
                    if (ReflectionExtensions.SupportsFilterToSubset)
                        fileUsage.FilterToSubset(m_WriteData.FileToObjects[internalName].ToArray());
                }
            }

PostPackingCallback

  1. 在完成 Pack逻辑后的回调事件

    上层开发者，注册监听 BuildCallbacks.PostPackingCallback

关键逻辑：

1

IPackingCallback.PostPacking(IBuildParameters parameters, IDependencyData dependencyData, IWriteData writeData);

Writing

WriteSerializedFiles - 序列化前奏 - MetaData

  1. 获取 GraphicsSettings、TypeDB 、目标平台 、 ContentBuildFlags

    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

    //
// 摘要:
//     Build options for content.
[Flags]
public enum ContentBuildFlags
{
    //
    // 摘要:
    //     Build content with no additional options.
    None = 0,
    //
    // 摘要:
    //     Do not include type information within the built content.
    DisableWriteTypeTree = 1,
    //
    // 摘要:
    //     Build Flag to indicate the Unity Version should not be written to the serialized
    //     file.
    StripUnityVersion = 2,
    //
    // 摘要:
    //     Build a development version of the content files.
    DevelopmentBuild = 4
}

  2. 查询缓存系统，构建缓存对象与需要重建的对象

  3. 计算需要重建对象的 SerializedFileMetaData

    • Hash算法
      • SpookyHash
      • MD5
      • MD4
      • 可扩展 HasingMethods.GetHashAlgorithm 自定义 Hash算法
    1
2
3
4
5
6
7
8
9
10
11
12
13

    [Serializable]
public class SerializedFileMetaData
{
    /// <summary>
    /// A hash of all the serialized files
    /// </summary>
    public Hash128 RawFileHash;
    /// <summary>
    /// Hash of file contents. Some resource files may choose to exclude sections of their content from this hash. For example,
    /// serialized files exclude the header of their content which allows this hash not to change with new Unity versions.
    /// </summary>
    public Hash128 ContentHash;
}

关键逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

private SerializedFileMetaData CalculateFileMetadata(ref WriteResult result)
{
    List<object> contentHashObjects = new List<object>();
    List<object> fullHashObjects = new List<object>();
    foreach (ResourceFile file in result.resourceFiles)
    {
        RawHash fileHash = HashingMethods.CalculateFile(file.fileName);
        RawHash contentHash = fileHash;
        fullHashObjects.Add(fileHash);
        if (file.serializedFile && result.serializedObjects.Count > 0)
        {
        	using (var stream = new FileStream(file.fileName, FileMode.Open, FileAccess.Read))
            {
                stream.Position = (long)result.serializedObjects[0].header.offset;
                contentHash = HashingMethods.CalculateStream(stream);
            }
        }
        contentHashObjects.Add(contentHash);
    }
    SerializedFileMetaData data = new SerializedFileMetaData();
    data.RawFileHash = HashingMethods.Calculate(fullHashObjects).ToHash128();
    data.ContentHash = HashingMethods.Calculate(contentHashObjects).ToHash128();
    return data;
}

ArchiveAndCompressBundles - 规整&数据压缩

  1. 构造 Task 对象用于抽象线程化支持
  2. 合并资源文件并根据压缩选项进行压缩 （该行为基于是否支持多线程运行坏境有所不同）
  3. 比较缓存文件与输出目录文件时间戳，若不同则拷贝缓存文件覆盖至输出文件路径

关键逻辑：

1
2
3
4
5
6
7
8
9
10

item.ResultDetails = new BundleDetails();
string writePath = string.Format("{0}/{1}", tempOutputFolder, item.BundleName);
if (!string.IsNullOrEmpty(item.CachedArtifactPath))
writePath = item.CachedArtifactPath;

Directory.CreateDirectory(Path.GetDirectoryName(writePath));
item.ResultDetails.FileName = item.OutputFilePath;
item.ResultDetails.Crc = ContentBuildInterface.ArchiveAndCompress(item.ResourceFiles.ToArray(), writePath, item.Compression);

CopyFileWithTimestampIfDifferent(writePath, item.ResultDetails.FileName, log);

AppendBundleHash - 追加Hash信息

  1. 仅在 AppendHashToAssetBundleName 开启才执行

关键逻辑：

1
2
3
4
5
6
7
8
9
10
11
12

string[] bundles = m_Results.BundleInfos.Keys.ToArray();
foreach (string bundle in bundles)
{
    var details = m_Results.BundleInfos[bundle];
    var oldFileName = details.FileName;
    var newFileName = string.Format("{0}_{1}", details.FileName, details.Hash.ToString());
    details.FileName = newFileName;
    m_Results.BundleInfos[bundle] = details;

    File.Delete(newFileName);
    File.Move(oldFileName, newFileName);
}

GenerateLinkXml - 生成AssetBundle使用的Link文件，便于代码裁剪

建议开启 IBuildParameters.WriteLinkXML

  1. 仅在 IBuildParameters.WriteLinkXML 选项开启执行

关键逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

var linker = LinkXmlGenerator.CreateDefault();
foreach (var writeResult in m_Results.WriteResults)
{
    linker.AddTypes(writeResult.Value.includedTypes);
#if UNITY_2021_1_OR_NEWER
    linker.AddSerializedClass(writeResult.Value.includedSerializeReferenceFQN);
#else
    if (writeResult.Value.GetType().GetProperty("includedSerializeReferenceFQN") != null)
    {
    	linker.AddSerializedClass(writeResult.Value.GetType().GetProperty("includedSerializeReferenceFQN").GetValue(writeResult.Value) as System.Collections.Generic.IEnumerable<string>);
	}
#endif
}

var linkPath = m_Parameters.GetOutputFilePathForIdentifier(k_LinkXml);
linker.Save(linkPath);

PostWritingCallback

  1. 在完成所有写操作后回调事件

    上层开发者，注册监听 BuildCallbacks.PostWritingCallback

关键逻辑：

1

IWritingCallback.PostWriting(IBuildParameters parameters, IDependencyData dependencyData, IWriteData writeData, IBuildResults results);
Unity, 构建管线
构建 Scriptable Build Pipeline SBP
本文由作者按照 CC BY 4.0 进行授权
